Layer Functions: Physical, Data Link, Network, Transport, etc.

Lesson Objectives

By the end of this lesson, you will:

1. Understand the specific functions of each layer in the OSI and TCP/IP models.
2. Learn how layers interact to ensure seamless data communication.
3. Explore real-world examples and protocols associated with each layer.

---

Introduction: The Division of Responsibilities

Think of a relay race where each runner has a specific role in passing the baton to the next. Similarly, the layers in networking models (OSI and TCP/IP) work collaboratively, with each layer handling a distinct aspect of data transmission.

In this chapter, we’ll explore the functions of each layer, focusing on their responsibilities, protocols, and importance in the overall communication process.

---

Layer Functions in the OSI and TCP/IP Models

1. Physical Layer

Purpose:
The Physical layer is responsible for the actual transmission of raw bits (0s and 1s) over a physical medium (e.g., cables, fiber optics, or radio waves).

Key Functions:

• Defines hardware specifications (e.g., cables, connectors).
• Manages signal transmission (electrical, optical, or wireless).
• Controls data transmission rates.

Examples of Technologies:

• Ethernet cables (Cat5, Cat6), fiber optics.
• Wi-Fi and Bluetooth for wireless communication.

---

2. Data Link Layer

Purpose:
The Data Link layer ensures reliable data transfer between devices on the same network segment. It organizes raw bits into frames and manages error detection and correction.

Key Functions:

• Framing: Converts raw data into frames for transmission.
• Error Detection: Detects and sometimes corrects errors using techniques like cyclic redundancy check (CRC).
• MAC Addressing: Assigns and uses Media Access Control (MAC) addresses to identify devices.

Examples of Protocols:

• Ethernet, Wi-Fi (IEEE 802.11).
• Point-to-Point Protocol (PPP).

---

3. Network Layer

Purpose:
The Network layer is responsible for routing and delivering packets across different networks. It handles logical addressing (IP addresses) and determines the best path for data to travel.

Key Functions:

• Routing: Finds the optimal path for data to travel to its destination.
• Logical Addressing: Uses IP addresses to identify devices across networks.
• Fragmentation: Splits large packets into smaller ones if necessary.

Examples of Protocols:

• Internet Protocol (IP), Internet Control Message Protocol (ICMP).
• Address Resolution Protocol (ARP).

Real-World Example:
When accessing a website, the Network layer ensures that packets are routed from your device to the web server.

---

4. Transport Layer

Purpose:
The Transport layer ensures end-to-end communication reliability. It breaks data into segments and manages error detection, retransmission, and flow control.

Key Functions:

• Segmentation: Breaks data into manageable segments.
• Flow Control: Regulates data transfer to prevent congestion.
• Error Handling: Retransmits lost or corrupted segments.

Examples of Protocols:

• Transmission Control Protocol (TCP): Reliable, connection-oriented communication.
• User Datagram Protocol (UDP): Faster, connectionless communication.

Real-World Example:
Streaming a video uses UDP for speed, while downloading a file uses TCP for reliability.

---

5. Session Layer (OSI Model Only)

Purpose:
The Session layer manages and maintains sessions between devices, ensuring that data streams are synchronized and organized.

Key Functions:

• Session Establishment: Opens and closes communication sessions.
• Synchronization: Manages data synchronization during long transfers.

Examples of Protocols:

• Remote Procedure Call (RPC), NetBIOS.

---

6. Presentation Layer (OSI Model Only)

Purpose:
The Presentation layer formats and translates data for the application layer, ensuring compatibility between devices. It also handles encryption and compression.

Key Functions:

• Data Translation: Converts data formats (e.g., ASCII to EBCDIC).
• Encryption: Secures data (e.g., SSL/TLS).
• Compression: Reduces data size for faster transmission.

Examples of Formats/Protocols:

• SSL/TLS for encryption.
• JPEG, PNG for image formatting.

---

7. Application Layer

Purpose:
The Application layer provides network services to end-user applications. It is the closest layer to the user and directly interacts with software like web browsers or email clients.

Key Functions:

• Network Services: Provides APIs and services like email, file transfer, or web browsing.
• User Interaction: Displays data to the user in an understandable format.

Examples of Protocols:

• HTTP/HTTPS, FTP, SMTP, DNS.

Real-World Example:
When you type a URL in a browser, the Application layer handles the HTTP request to fetch the webpage.

---

How Layers Interact

• Encapsulation: Data is packaged with headers at each layer as it moves down the stack (e.g., from Application to Physical).
• Decapsulation: Headers are removed layer by layer as data moves up the stack at the receiver.

---

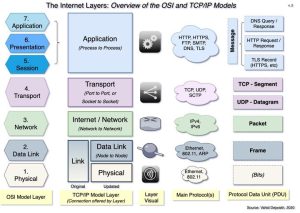

Comparison of OSI and TCP/IP Layers

OSI Layer	TCP/IP Equivalent	Key Responsibilities
Application	Application	End-user network services
Presentation	Application	Data formatting and encryption
Session	Application	Session management
Transport	Transport	Reliable delivery, segmentation
Network	Internet	Routing, addressing
Data Link	Network Access	Framing, MAC addressing
Physical	Network Access	Bit-level transmission

---

Real-World Example: Watching a Video Online

1. Application Layer:
   • The user requests the video through a web browser using HTTP.
2. Transport Layer:
   • TCP segments the video stream, ensuring reliability.
3. Network Layer:
   • IP routes packets to the video server.
4. Data Link Layer:
   • Frames are sent to the router using Ethernet.
5. Physical Layer:
   • Frames are converted into electrical signals and transmitted.

---

Activity: Map Protocols to Layers

1. Match the following protocols to their respective layers:
   • HTTP, TCP, IP, Ethernet.
2. Discuss how each protocol contributes to the data transmission process.

---

Reflection: Why Layer Functions Matter

The layered approach simplifies network design and troubleshooting by dividing responsibilities into manageable tasks. Understanding these functions is critical for diagnosing issues and designing efficient systems.

---

What’s Next?

In the next chapter, we’ll explore Protocols Overview, diving into HTTP, FTP, SMTP, SNMP, and other essential networking protocols.

Your networking expertise is growing—let’s keep building! 🚀
