Protocols Overview: HTTP, FTP, SMTP, SNMP

Lesson Objectives

By the end of this lesson, you will:

1. Understand the purpose and function of key network protocols: HTTP, FTP, SMTP, and SNMP.
2. Learn the use cases and significance of each protocol in modern networks.
3. Explore how these protocols operate at different layers of the OSI and TCP/IP models.

---

Introduction: Rules of Communication

Protocols are like languages that devices use to communicate over a network. Just as humans need rules for effective communication, network protocols establish guidelines for data transfer, reliability, and security.

In this chapter, we’ll dive into four essential protocols—HTTP, FTP, SMTP, and SNMP—exploring their purposes, use cases, and how they fit into the networking stack.

---

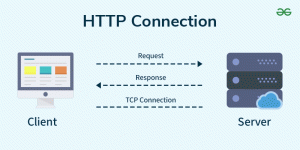

1. Hypertext Transfer Protocol (HTTP)

Definition:

HTTP is the foundation of the World Wide Web, enabling communication between web browsers (clients) and web servers.

Key Features:

1. Request-Response Model:
   • The client sends an HTTP request (e.g., a webpage URL), and the server responds with the requested content (e.g., HTML, CSS, JavaScript).
2. Stateless Protocol:
   • Each request is independent and does not retain state (e.g., login information).
3. Port:
   • Default port: 80 for HTTP, 443 for HTTPS (secure version).

Use Cases:

• Accessing webpages via browsers.
• RESTful APIs for application communication.

Example:

When you type www.example.com in a browser:

• The browser sends an HTTP GET request to fetch the webpage.
• The server responds with the HTML content, which the browser renders for the user.

---

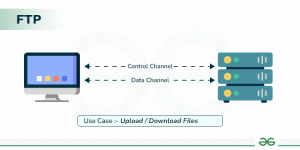

2. File Transfer Protocol (FTP)

Definition:

FTP enables the transfer of files between a client and a server over a network.

Key Features:

1. Connection Modes:
   • Active Mode: The server initiates data transfer connections.
   • Passive Mode: The client initiates all connections, ideal for firewalls.
2. Authentication:
   • Supports anonymous or authenticated access.
3. Port:
   • Default ports: 21 for control commands, 20 for data transfer.

Use Cases:

• Uploading website files to a server.
• Transferring large datasets between systems.

Example:

A web developer uses FTP to upload website files to a hosting server.

---

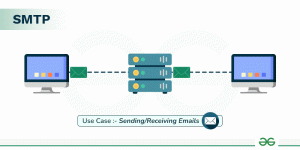

3. Simple Mail Transfer Protocol (SMTP)

Definition:

SMTP is used to send emails from clients to mail servers and between mail servers.

Key Features:

1. Push Protocol:
   • Transfers emails from the sender to the server and between servers.
2. Port:
   • Default ports: 25 (legacy), 587 (modern, secure), 465 (SSL/TLS).
3. Reliability:
   • Queues emails for retries if delivery fails initially.

Use Cases:

• Sending emails from an email client (e.g., Outlook) to a mail server.
• Relaying emails between mail servers.

Example:

When you send an email via Gmail, SMTP is used to relay your email to the recipient’s mail server.

---

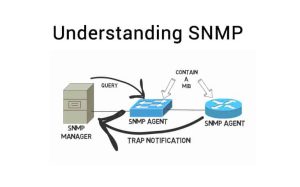

4. Simple Network Management Protocol (SNMP)

Definition:

SNMP is a protocol for monitoring and managing devices on a network.

Key Features:

1. Components:
   • Manager: Collects and processes data from devices.
   • Agent: Software on devices that communicates with the manager.
2. Operations:
   • Get: Retrieve device information.
   • Set: Update device configurations.
   • Trap: Receive alerts for specific events.
3. Port:
   • Default port: 161 for general operations, 162 for traps.

Use Cases:

• Monitoring network health (e.g., bandwidth usage).
• Configuring network devices remotely.

Example:

A network administrator uses SNMP to monitor router uptime and bandwidth utilization.

---

How These Protocols Fit into the OSI Model

Protocol	OSI Layer	Purpose
HTTP	Application	Fetch and display web content
FTP	Application	Transfer files between client and server
SMTP	Application	Send and relay emails
SNMP	Application	Manage and monitor network devices

---

Comparison of Protocols

Aspect	HTTP	FTP	SMTP	SNMP
Purpose	Web communication	File transfer	Email sending	Network management
Transport Protocol	TCP	TCP	TCP	UDP
Ports	80/443	21/20	25/587/465	161/162
Security	HTTPS for encryption	FTPS/SFTP options	STARTTLS/SSL	SNMPv3 for security

---

Activity: Match Protocols to Scenarios

1. Sending a file to a web server → ____.
2. Monitoring router bandwidth → ____.
3. Fetching a webpage → ____.
4. Sending an email → ____.

---

Reflection: Why Are These Protocols Important?

Each protocol serves a unique role in ensuring seamless communication in a network. From accessing webpages to managing devices, understanding these protocols is critical for building and maintaining functional networks.

---

What’s Next?

In the next module, we’ll delve deeper into Networking Protocols and Standards, starting with IP addressing and subnetting.

Your protocol knowledge is expanding—let’s keep building! 🚀
